Product Details

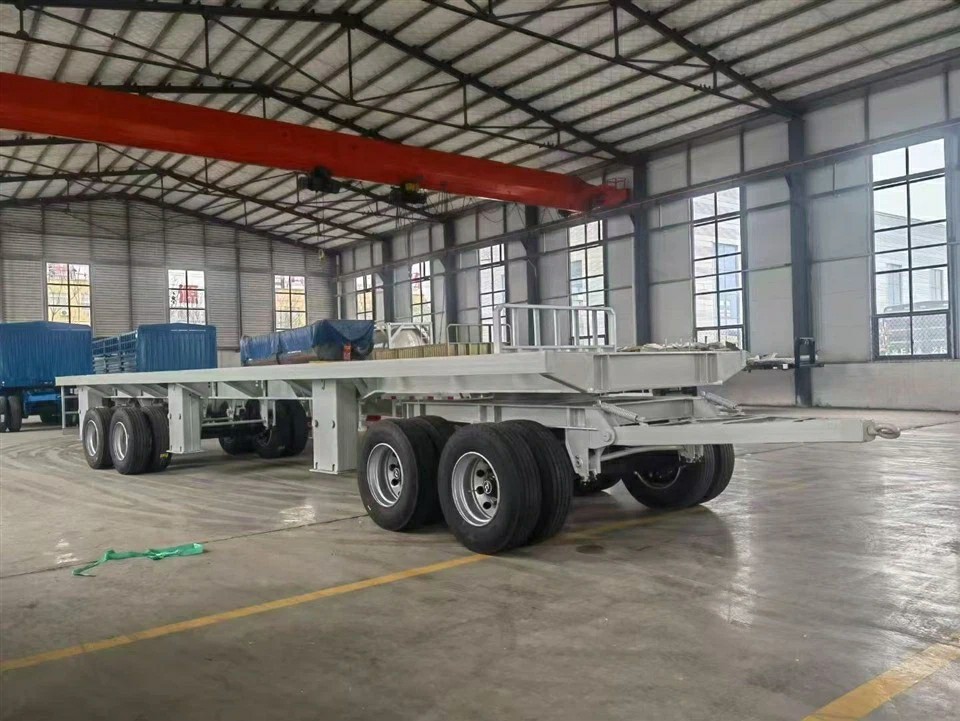

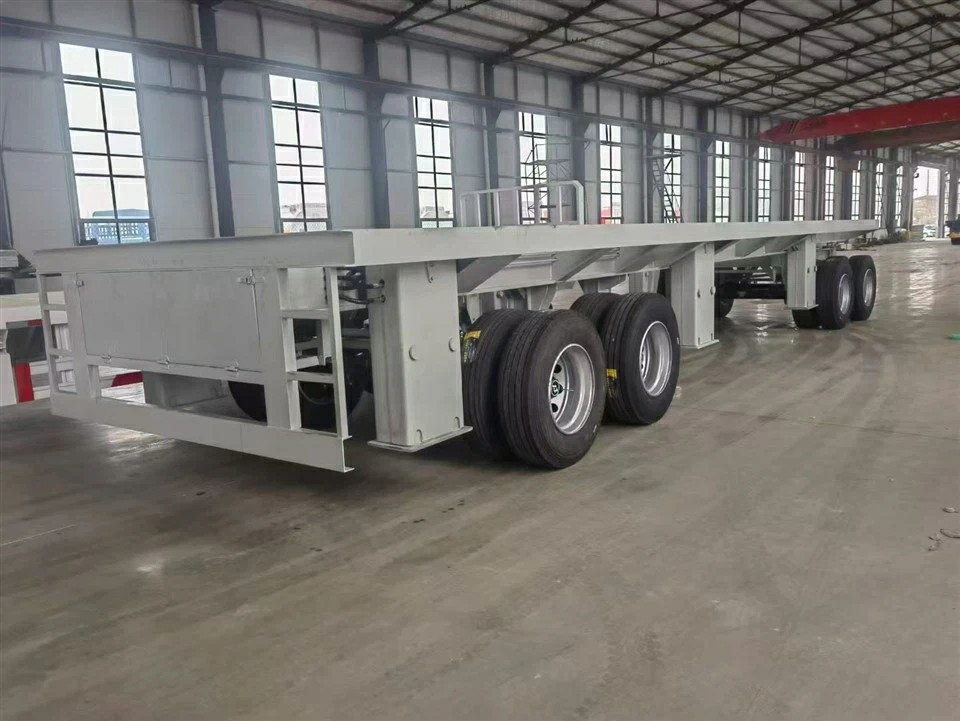

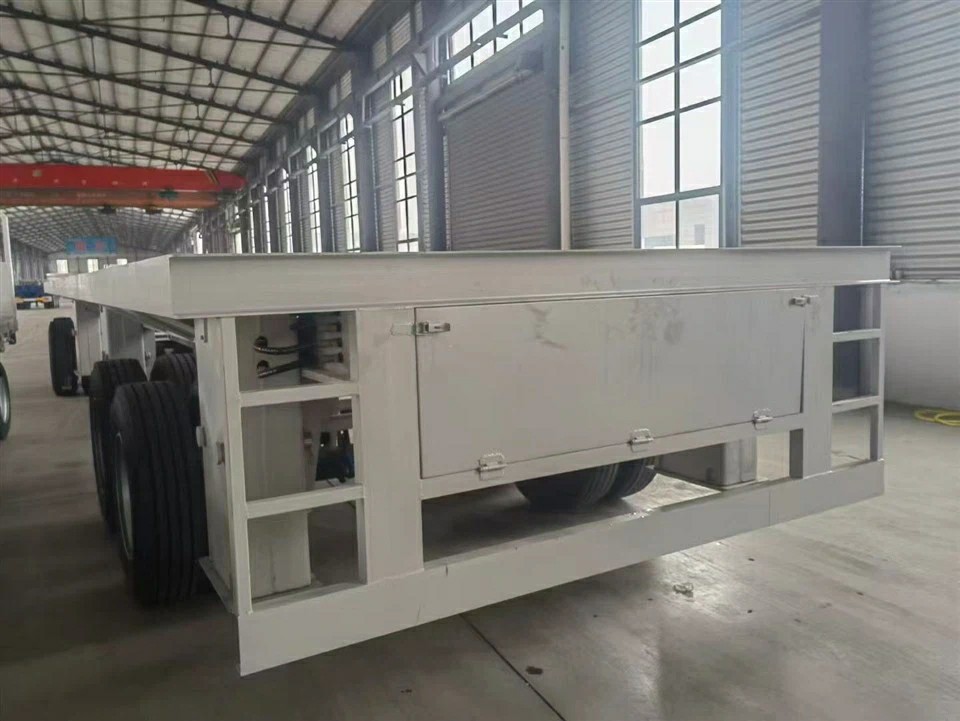

The center-axle flatbed trailer features distinct core characteristics and flexible structure. It adopts a durable high-strength steel lightweight frame, with a 6500-9500mm anti-slip platform + detachable guardrails, paired with universal fixing locks, making it suitable for various types of goods. Equipped with BPW axles for high stability and an EBS braking system with fast response, it ensures driving safety on complex road conditions. An optional hydraulic tail lift is available to improve loading and unloading efficiency, making it an efficient equipment for overseas urban-rural short-distance transfer and logistics distribution.
Product Parameters
|
Category |
Specific Parameters |
|
Overall Dimensions |
Total length: 7500-11000mm (including traction connection device); Width: 2300-2500mm (compliant with EU road width limits); Height: 1200-1400mm (only the height of the flatbed platform). |
|
Flatbed Platform Dimensions |
Length: 6500-9500mm; Width: 2300-2500mm; Platform height from the ground: 1100-1300mm. |
|
Wheelbase |
Center-axle layout; Wheelbase: 4500-6000mm; Front turning radius ≥750mm (ensuring steering flexibility, suitable for narrow road conditions). |
|
Curb Weight |
4000-6000kg |
|
Rated Load Capacity |
10000-14000kg |
|
Total Mass |
14000-20000kg; Vertical load on the tractor ≤8000N (compliant with center-axle trailer load standards). |
|
Platform Structure |
Adopts 8-10mm thick anti-slip checkered steel plate; 12# channel steel crossbeams are installed under the platform, with a spacing of 500-600mm. |
|
Protection Configuration |
Detachable guardrails (height: 600-800mm, steel pipe diameter: 30mm); 4-6 sets of universal fixing locks on each side (tensile force ≥3000N); 20mm high anti-slip edges on the edges. |
|
Axles |
Two-axle configuration; Single axle load: 9000-10000kg; Equipped with BPW axles. |
|
Suspension System |
Mechanical leaf spring suspension, equipped with 4-6 pieces of 70×9mm springs; Air suspension optional. |
|
Tires |
4 tires; Rims: 6.00-17.5 tubeless steel rims. |
|
Braking System |
Dual-circuit pneumatic braking; Standard with EBS electronic braking system + ABS anti-lock braking system. |
|
Traction Device |
Ball-joint type drawbar (compliant with ISO 11407 standard), compatible with interfaces of overseas tractors such as Iveco and Renault. |
|
Electrical System |
Voltage: 24V; 7-pin ISO standard socket; LED position lights and brake lights; Reflective signs attached to the vehicle body. |
Product Applications
Relying on compliance and flexible configurations, the center-axle flatbed trailer is widely suitable for transportation in multiple scenarios:
In urban-rural agricultural machinery transportation: With a rated load of 10-14 tons, it can carry small harvesters and tractors. The anti-slip platform and fixing locks prevent slipping due to bumps, making it suitable for narrow rural roads in Europe.
In short-distance building materials distribution: The 6500-9500mm platform can load cement boards and steel pipes; detachable guardrails facilitate loading and unloading; BPW axles handle complex urban-rural road conditions.
In logistics distribution scenarios: It can be paired with a hydraulic tail lift for rapid transfer of small equipment and home appliances. The 24V electrical system seamlessly connects with overseas logistics vehicles, and the EBS braking system ensures the safety of urban distribution, making it an efficient choice for overseas regional transportation.
