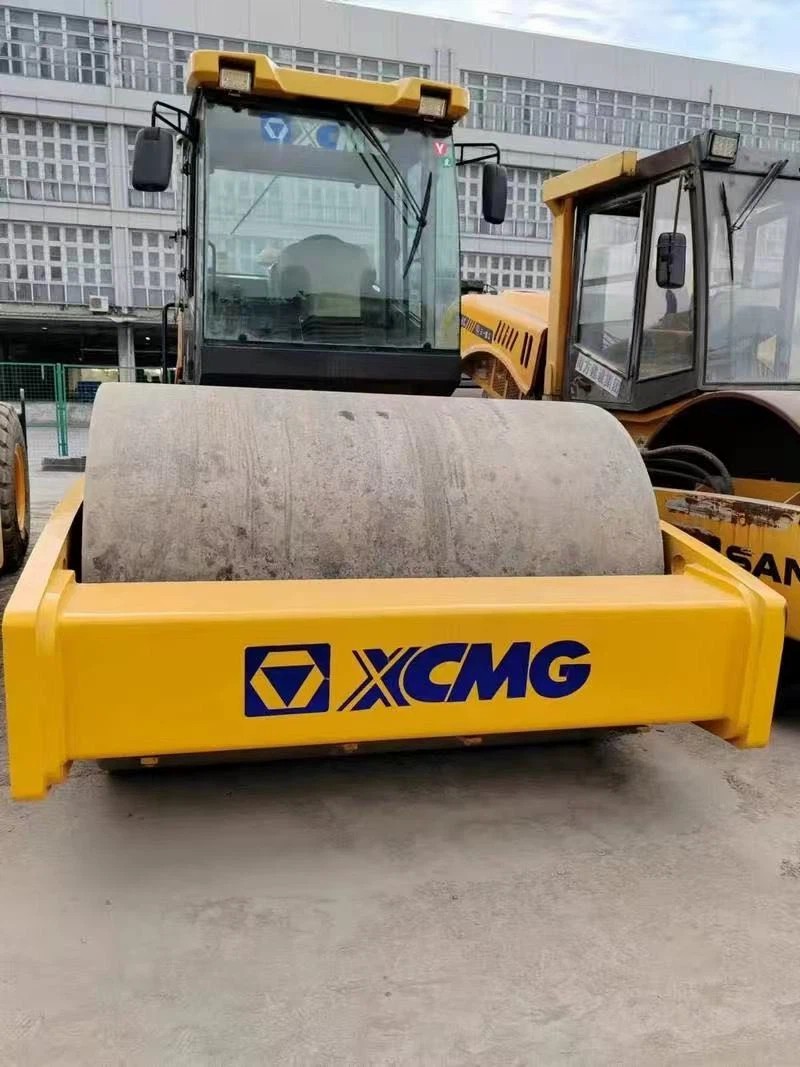

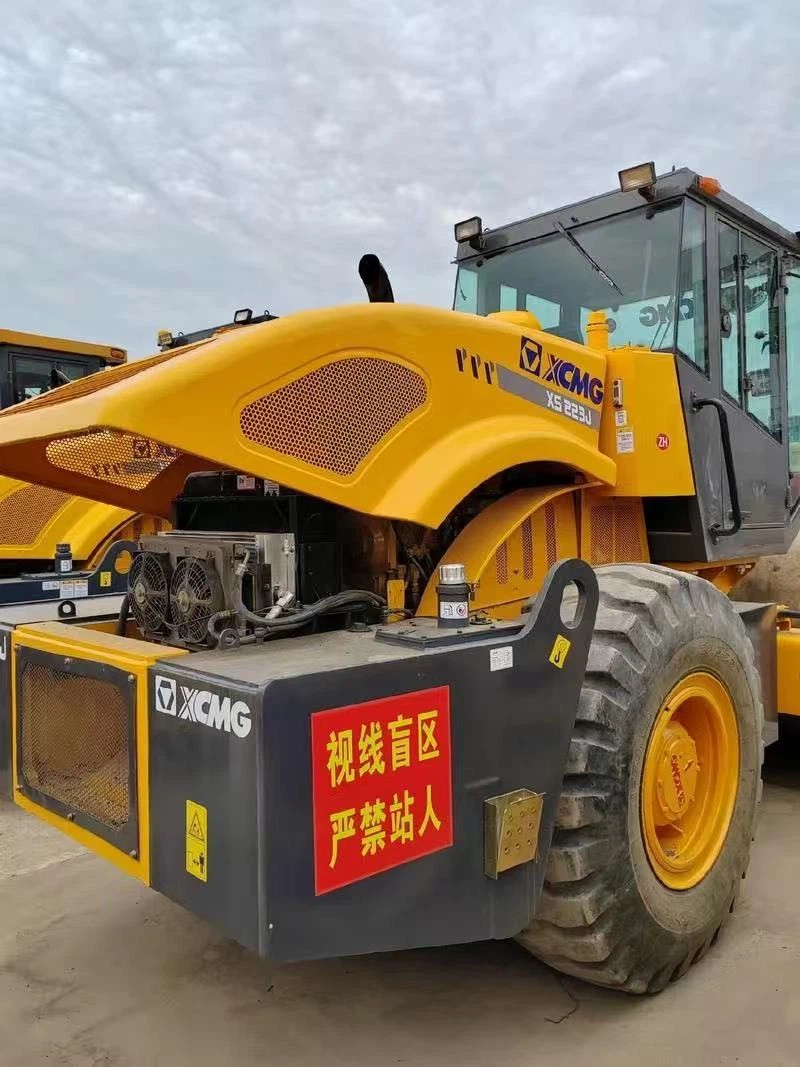

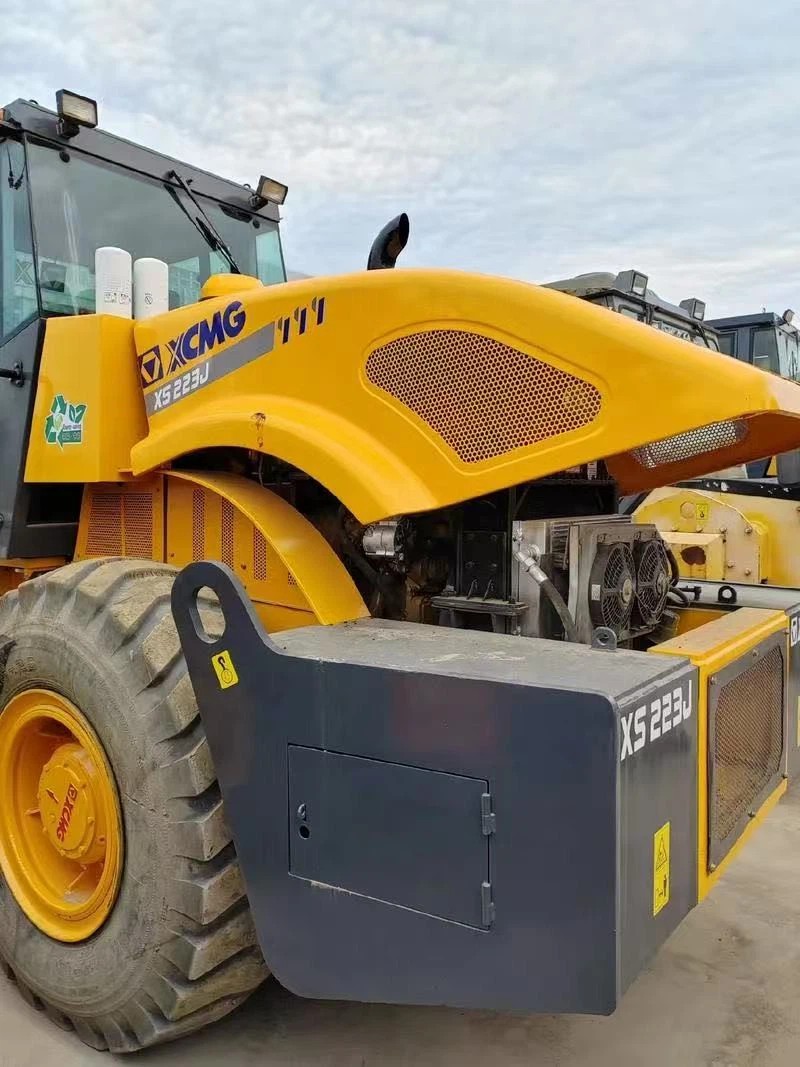

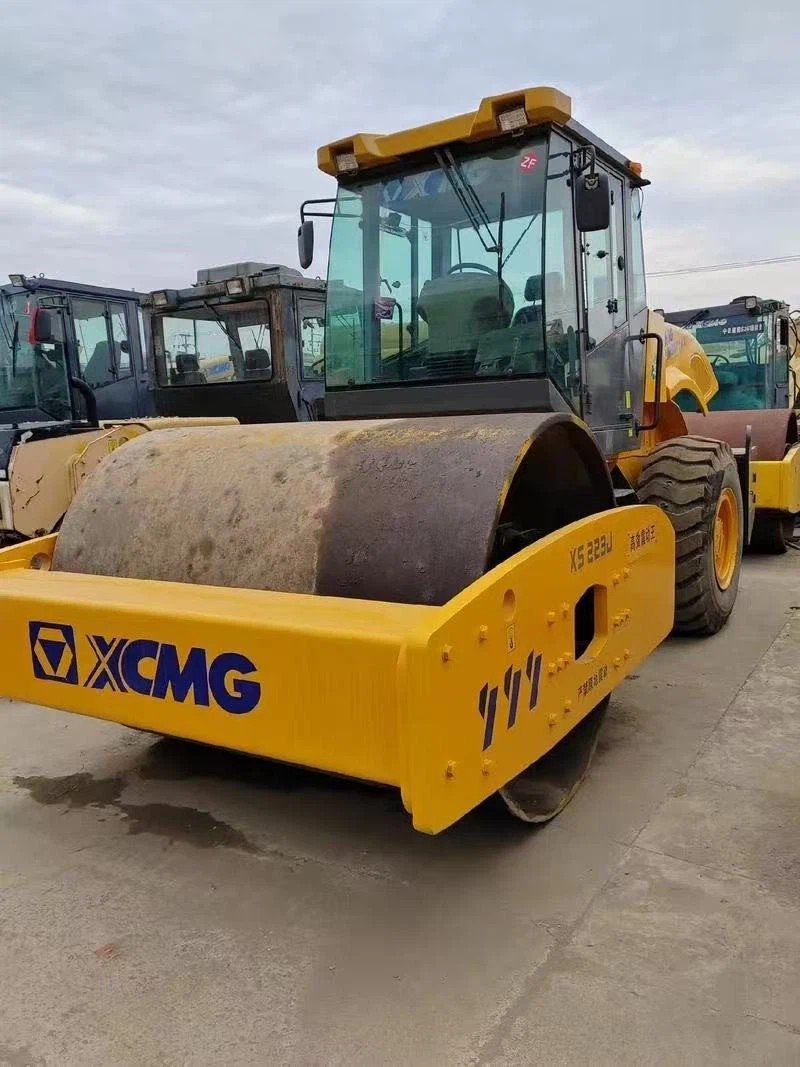

Used XCMG XS223J Static Roller – A Cost-Effective Choice
This used XCMG XS223J static roller is a 22-ton heavy-duty equipment. It adopts static compaction technology, featuring high compaction flatness and strong force. Suitable for final compaction work in various foundation projects such as subgrades and asphalt pavements, it boasts stable and reliable performance.
Features and Technology
Core Performance and Refurbishment GuaranteeThe equipment has undergone professional refurbishment, with the 22-ton static pressure system fully restored to deliver high and uniform linear pressure. Core compaction functions have been strictly debugged to ensure it achieves high density and flatness comparable to new machines, with reliable performance guaranteed.
Mechanical Structure and DurabilityKey structures such as hinge frames and wheel axles have undergone flaw detection and reinforcement treatment to eliminate hidden risks. During refurbishment, aged seals and bearings were replaced, significantly improving the overall structural rigidity and motion stability, further enhancing durability.
Overall Condition and Use ValueThe entire machine has undergone thorough cleaning and anti-corrosion painting, giving it a brand-new appearance. While maintaining high cost-effectiveness, the refurbished machine outperforms ordinary used equipment in working condition, with its operation rate and resale value effectively guaranteed.
Technical Specifications
|
Parameter Item |
Details |
|
Operating Weight |
22,000kg (22-ton main model) |
|
Overall Dimensions |
Length 6220mm × Width 2430mm × Height 3200mm |
|
Minimum Turning Radius |
6500mm; Steering Angle ±33°; Swing Angle ±10° |
|
Minimum Ground Clearance |
448mm |
|
Theoretical Climbing Capacity |
30%, suitable for multi-terrain operations |
|

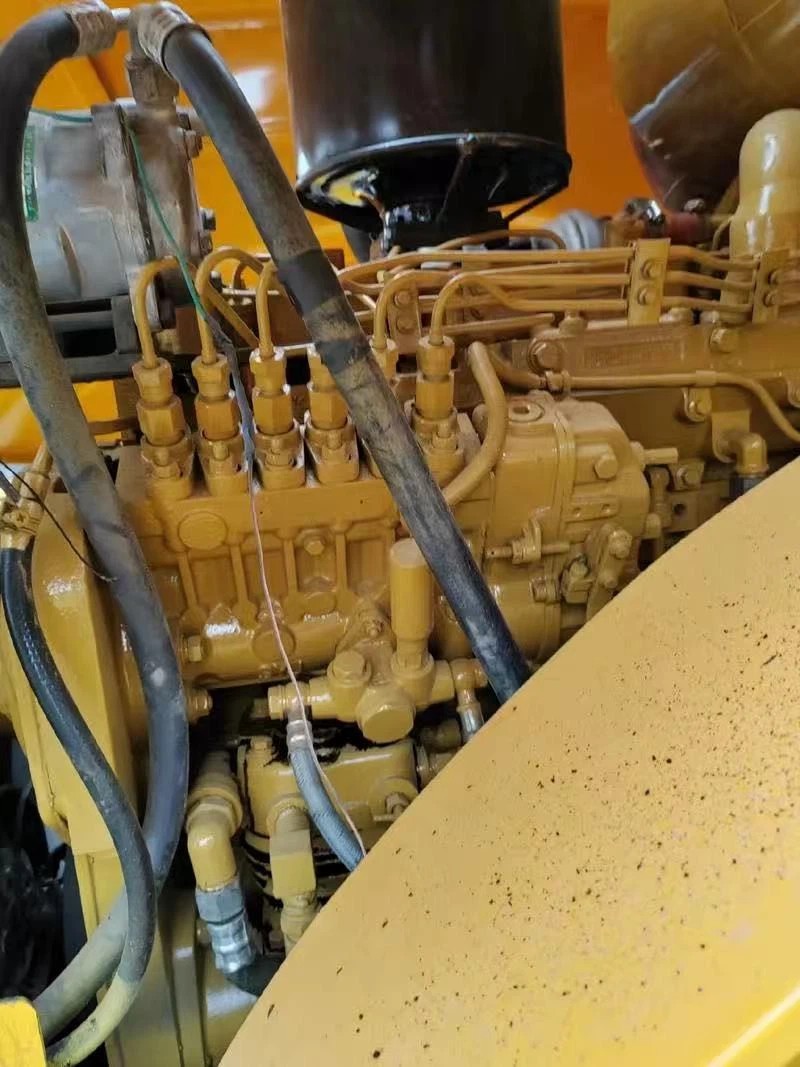

Engine Model |
Shangchai SC8D185.2G2B1 turbocharged diesel engine |
|
Rated Power |
136kW@1800r/min, strong power with optimized fuel consumption |
|
Emission Standard |
Complies with non-road China Stage II / Euro II standards, suitable for multi-region use |
|

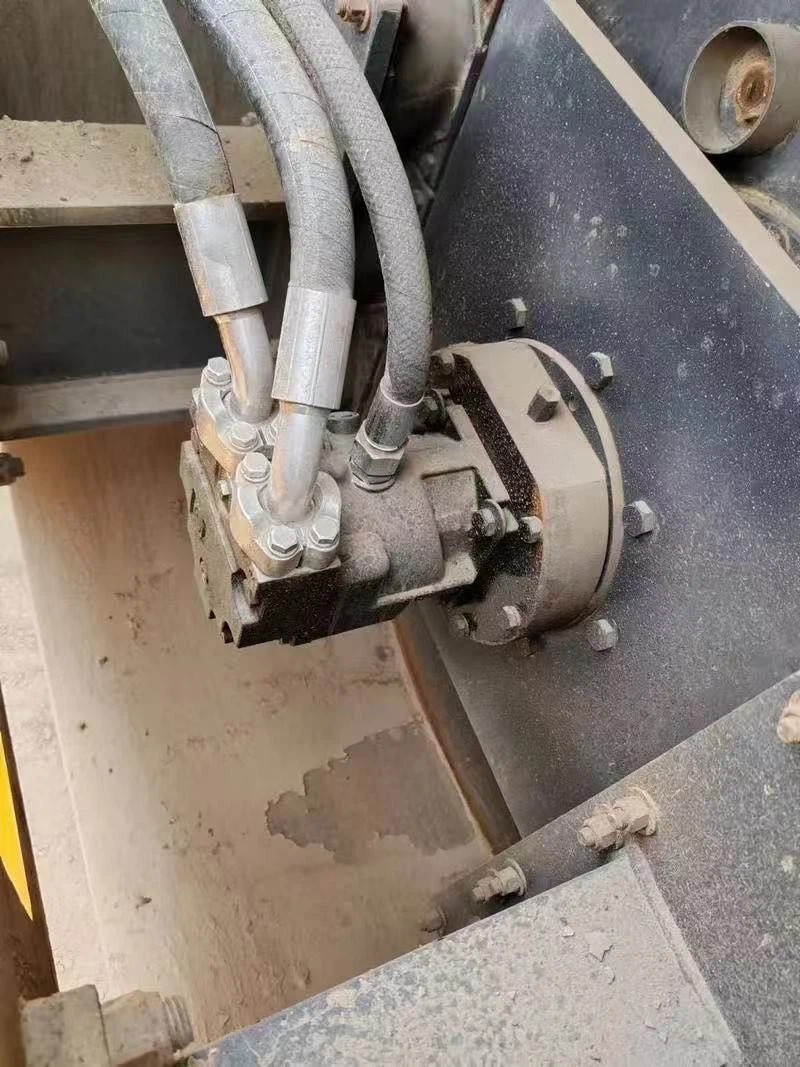

Vibration System |
Closed hydraulic system, equipped with imported piston pump and motor, high reliability |
FAQ
Q: What if the vibrating drum does not vibrate or vibrates weakly?
A: First, check if the hydraulic oil level is sufficient and if the filter element is clogged. If the oil is normal, inspect the vibration pump and motor for leaks (possible aging of seals or component wear). It is also necessary to check the electrical control switch for poor contact.
Q: What are the common causes of insufficient engine power?
A: Most are due to clogged fuel filters or air in the oil circuit – clean the filter and bleed air from the oil circuit. A clogged intake system (dirty air filter) can also reduce power, requiring air filter replacement. For used equipment, check the fuel injector condition for poor atomization.
