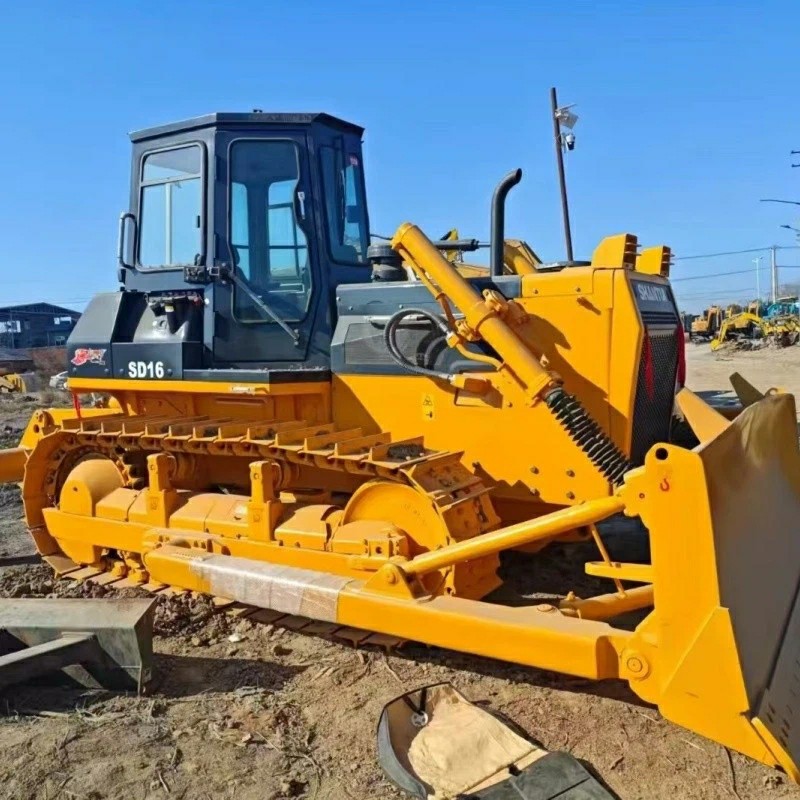

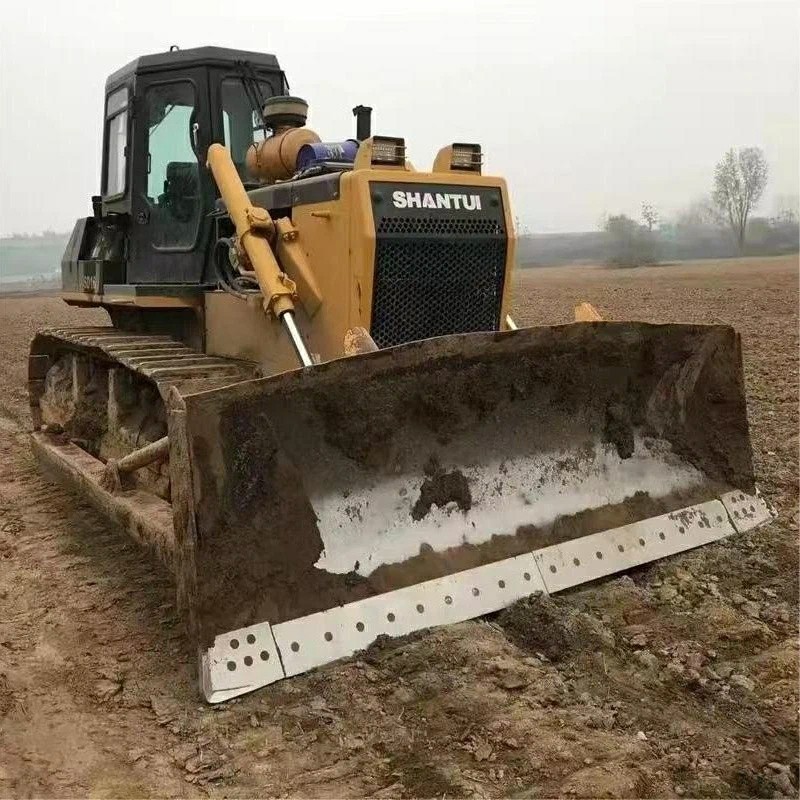

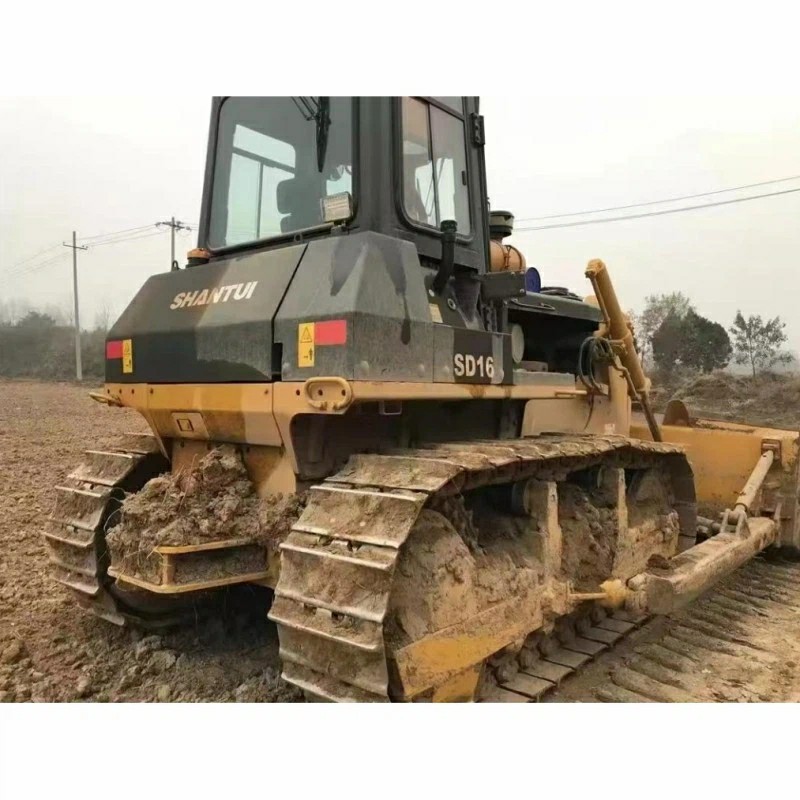

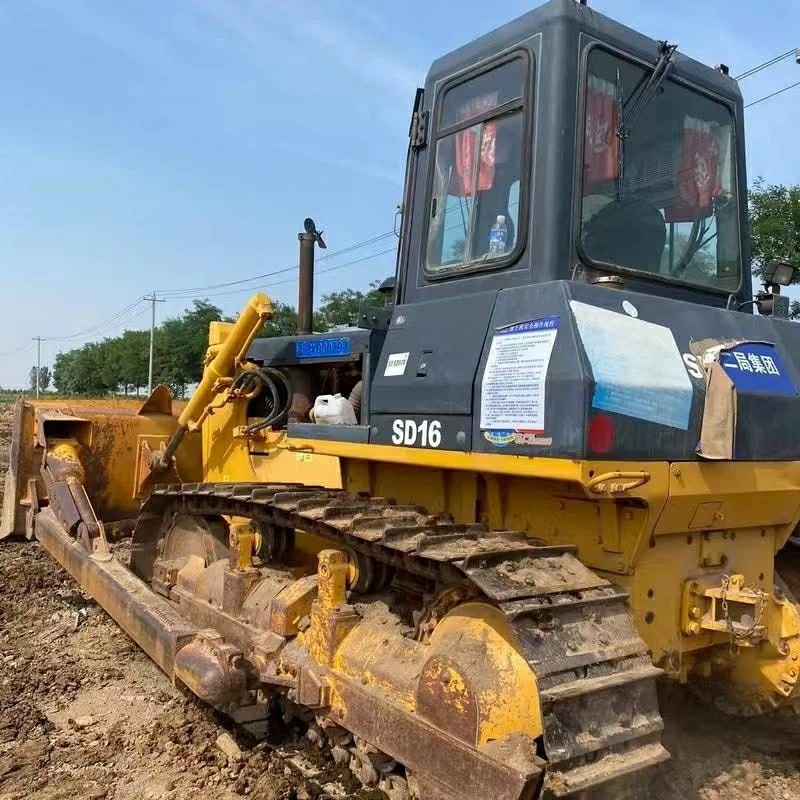

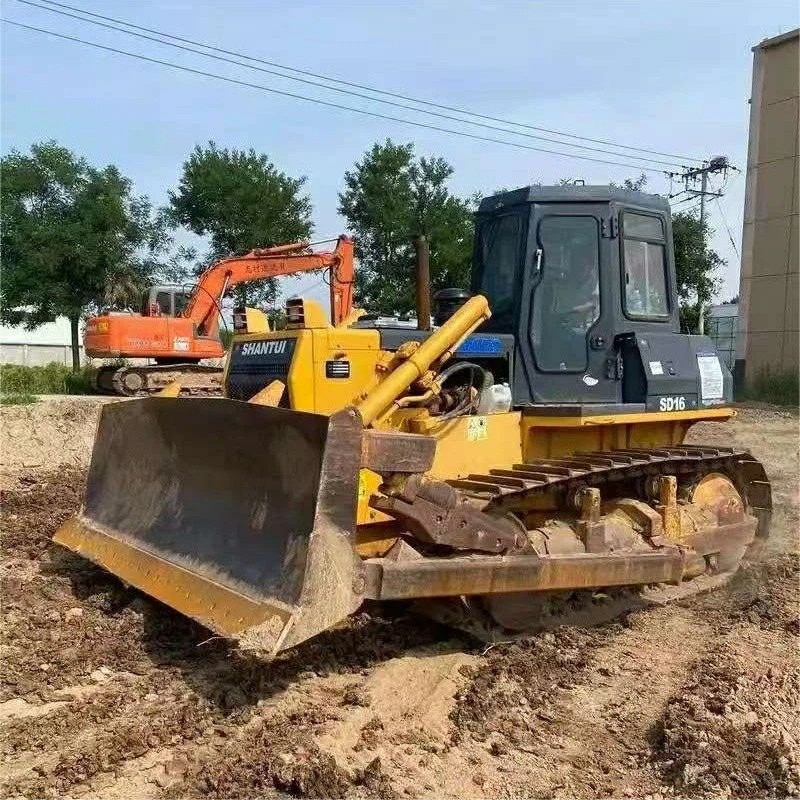

Used Shantui SD16 Crawler Hydraulic Bulldozer
This used Shantui SD16 crawler bulldozer adopts reliable hydraulic transmission and hydraulic control, featuring strong power and stable operation. It is robust, durable, and low in maintenance costs, making it ideal for heavy-duty operations such as earth excavation, site leveling, and mine stacking. It is a highly cost-effective choice for construction machinery.
Key Features and Manufacturing Quality

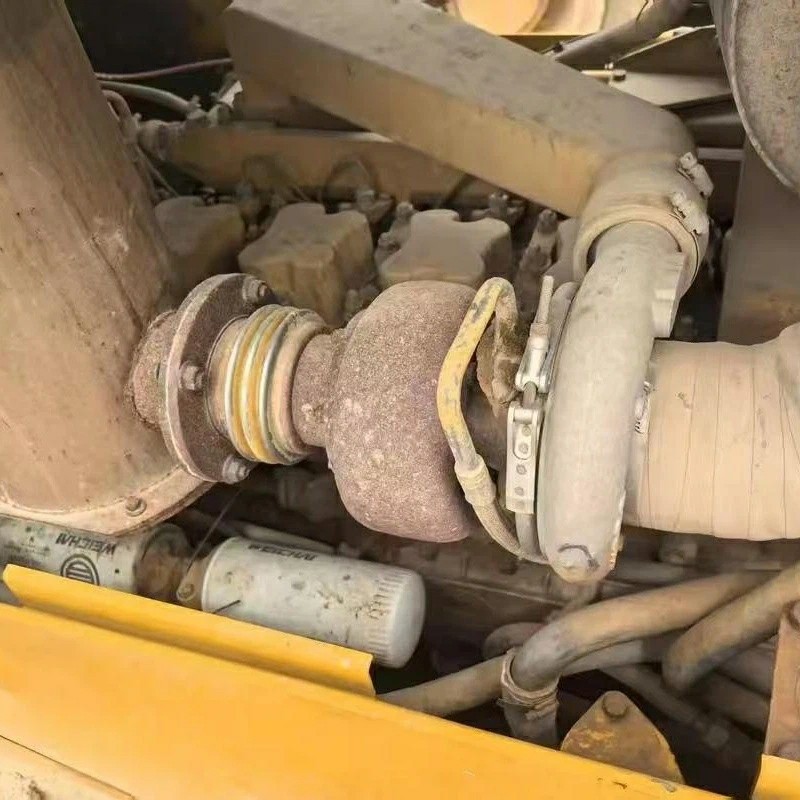

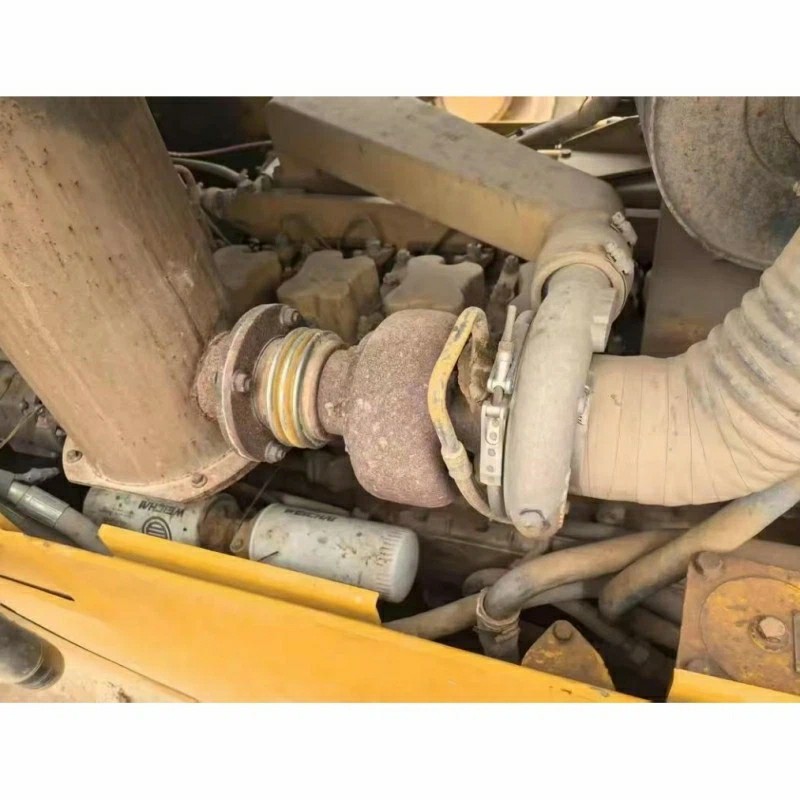

Equipped with a Weichai engine, it delivers strong power and energy efficiency. The hydraulic system is sensitive, and the 4.5m³ blade ensures high efficiency. With a long track ground contact length, it is suitable for multiple scenarios such as mines and construction sites, offering easy operation and convenient maintenance.
Boasting excellent manufacturing quality, it is derived from Komatsu technology. The frame adopts a "convex steel" structure, the blade is made of high-strength wear-resistant steel, the self-developed transmission system is stable, and key electrical components are imported. Its durability has been long-term verified by the market. This machine has undergone comprehensive inspection and maintenance, capable of easily handling your daily challenges.
Technical Specifications
|
Category |
Details |
|
Basic Specifications |
Overall Operating Weight: 17,000kg (standard type); Length × Width × Height (excluding ripper): 5140×3388×3032mm; Minimum Ground Clearance: 400mm |
|
Power System |
Engine Model: Weichai WD10/WP10 series; Rated Power: 120-131kW; Rated Speed: 1850rpm; Emission Compliance: China Stage III; Fuel Tank Capacity: 315L |
|
Travel Performance |
Forward Speed: 0-3.29/0-5.82/0-9.63km/h (3 gears); Reverse Speed: 0-4.28/0-7.59/0-12.53km/h (3 gears); Track Center Distance: 1880mm; Track Shoe Width: 510/560/610mm (optional); Ground Pressure: 0.067MPa; Climbing Capacity: 30° |
|
Working Device |
Blade Type: Straight tilting blade, angle blade, U-shaped blade (optional); Blade Capacity: 4.3-5.0m³; Maximum Lifting Height: 1095mm; Maximum Cutting Depth: 540mm |
|
Transmission & Hydraulics |
Transmission Mode: Hydro-mechanical transmission, planetary power shift gearbox (3 forward, 3 reverse); Hydraulic System Working Pressure: 14MPa; Equipped with overload protection function |
Services
Pre-sales: Strictly select vehicle sources, conduct professional inspections, and provide authentic reports and complete procedures.
In-sales: Assist in property rights transfer and coordinate logistics and transportation.
After-sales: Provide warranty for core components, as well as spare parts supply and technical consultation support.
FAQ
Q: How to conduct preliminary troubleshooting for common faults?
A: Common issues include slow blade lifting, high transmission oil temperature, and gear failure. For abnormal blade movement, first check the hydraulic oil level, filter element, and measure the system pressure (normal: 14MPa). For transmission faults, check the oil level and pressure, and inspect for iron filings or other impurities in the oil.
Q: What are the key items for daily and regular maintenance?
A: Daily maintenance includes checking oil levels, hydraulic pipelines, and electrical systems. Regular maintenance is divided by operating hours: replace fuel filters and transmission oil at 250 hours; lubricate key parts and adjust belt tension at 1000 hours; clean the cooling system and inspect tracks at 4000 hours.
Q: How to judge the condition of core components?
A: For the engine, check startup smoothness and exhaust smoke; for the hydraulic system, test action response and check for leaks; for the transmission system, test shift smoothness and measure transmission pressure. Meanwhile, inspect track wear, blade edge condition, and completeness of maintenance records.
