Product Introduction

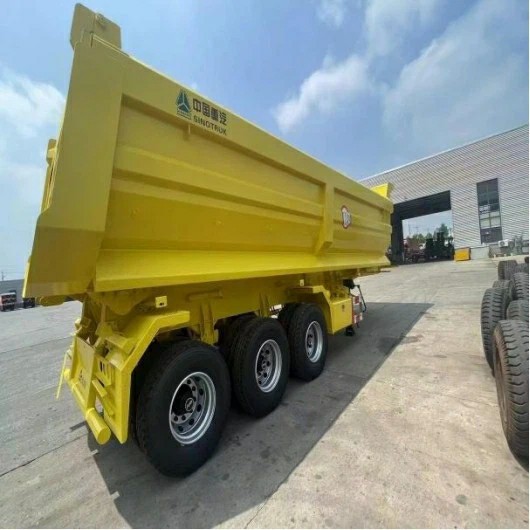

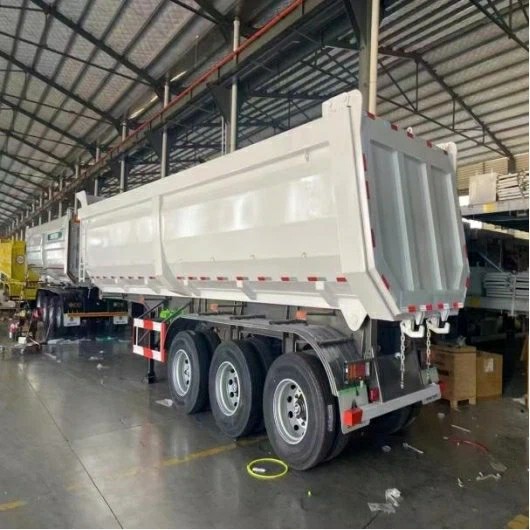

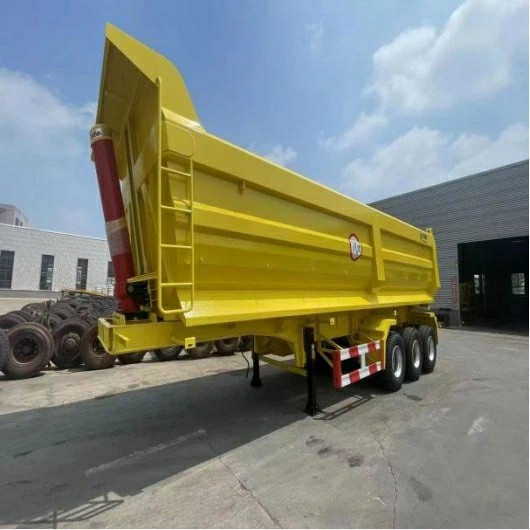

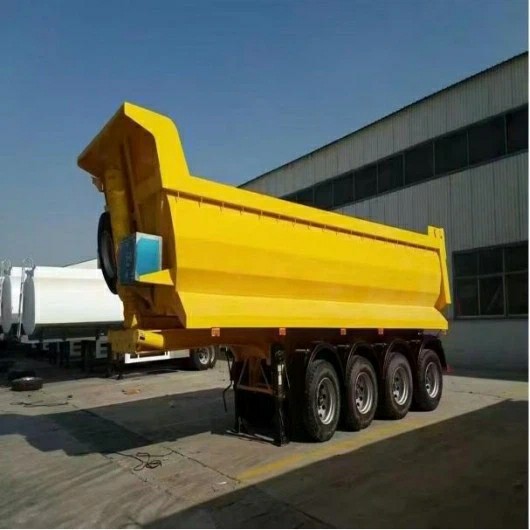

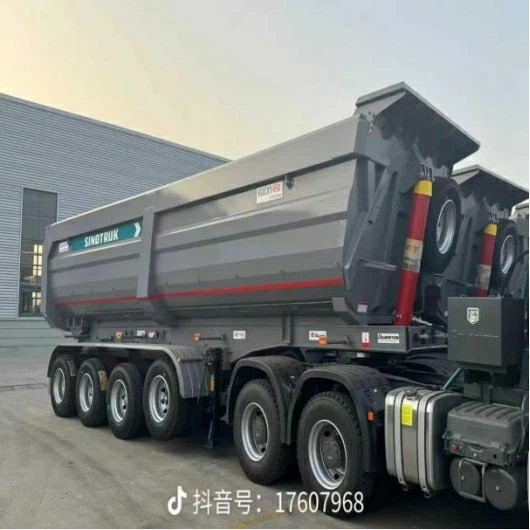

The U-type rear-tipping dump semi-trailer adopts a dead-angle-free U-shaped cargo box design, combined with a reliable hydraulic rear-tipping system. It is a heavy-duty equipment specially designed for efficiently transporting and unloading bulk materials such as sand, gravel, and ores in mining and infrastructure scenarios.
Product Details
This vehicle features a U-shaped cargo box design with no dead angles, making it easy to unload, and is suitable for transporting bulk materials like sand, gravel, and ores. The frame is made of Q345B/T700 high-strength steel, paired with a hydraulic rear-tipping system, ensuring stable lifting and fast unloading. It is standard equipped with 13T/16T well-known brand axles, WABCO braking system, and LED lamps; some models can be optionally configured with airbag suspension or ramps. It is widely used in mining and infrastructure scenarios.
Product Parameters
|
Category |
Specific Parameters |
|
Overall Dimensions |
3-axle: 10000mm×2500mm×3800mm; 4-axle: 10500mm×2500mm×3900mm |
|
Axles (Optional) |
3-axle, 4-axle, 5-axle, 6-axle |
|
Gross Load Mass |
60T, 80T, 100T, 120T |
|
Hydraulic System |
Imported Hyva oil cylinder; Type: FE/FC |
|
Suspension System |
Heavy-duty mechanical suspension / airbag / bogie |
|
Braking System |
WABCO RE 6 relay valve, T30/30 brake chamber |
|
Toolbox |
1 piece, size can be freely selected |
|
Paint |
1 layer of anti-corrosion primer, 2 layers of topcoat |
Advantages and Applications
Core Advantages
Efficient and thorough unloading: The U-shaped cargo box has no dead angles, and combined with the hydraulic rear-tipping system, it allows bulk materials such as sand, gravel, and ores to slide down quickly with little residue, significantly shortening unloading time.
Strong load-bearing capacity and durability: The frame and cargo box are made of high-strength steel with a double-plate main beam design, achieving a load-bearing capacity of 40-80 tons. They can withstand long-term wear and impact from materials, ensuring a long service life.
Stable and safe driving: The U-shaped structure has a lower center of gravity; paired with multi-axle support and widened and thickened leaf spring suspension, it is more stable on bumpy roads or when turning. Equipped with a well-known brand braking system as standard, it is less likely to roll over during unloading.
Main Applications
Mining field: Primarily used for transporting coal, various ores, and slag, adapting to complex road conditions in mining areas and meeting the needs of heavy-load and efficient transportation.
Engineering construction: Transports building materials such as sand, gravel, earthwork, and precast concrete components in infrastructure and road construction, cooperating with construction machinery to improve operation efficiency.
Bulk cargo transportation: Can be used for medium and long-distance transportation of grain, construction waste, etc. The large-capacity design can reduce the number of transportation trips and lower costs.
