Product Introduction
The 100-ton 6-axle hydraulic dump semi-trailer is a 6-axle vehicle specially designed for ultra-heavy bulk materials. It is suitable for mines and large-scale infrastructure scenarios, and can efficiently complete the automatic unloading of materials such as ores and earthwork.
Product Details
This vehicle adopts a three-line six-axle design with a rated load capacity of 100 tons, making it a heavy-duty transportation equipment that can legally operate on roads. The frame is made of Q345B high-strength steel, formed by automatic submerged arc welding, which is sturdy and torsion-resistant. Equipped with a hydraulic dump system, combined with a WABCO braking system and 25 tires, it reduces road pressure. It is suitable for mines, engineering and other scenarios, efficiently transporting goods such as ores and heavy equipment.
Product Parameters
|
Category |
Specific Parameters |
|
Basic Information |
Vehicle type: 100-ton 6-axle hydraulic dump semi-trailer, suitable for ultra-heavy bulk materials such as ores and earthwork; ECE/DOT certification optional for export |
|
Overall Dimensions & Weight |
Length: 8-13m (customizable), width: 2.5-2.7m, height: 2.8-3.8m; curb weight: 15-18t, gross weight: 100t |
|
Load-bearing & Structure |
6 axles of 16-20t class; cargo box material: Q345B/T700 steel, specially made steel plate box; volume: 35-60m³ (rectangular/U-shaped optional) |
|
Key Configurations |

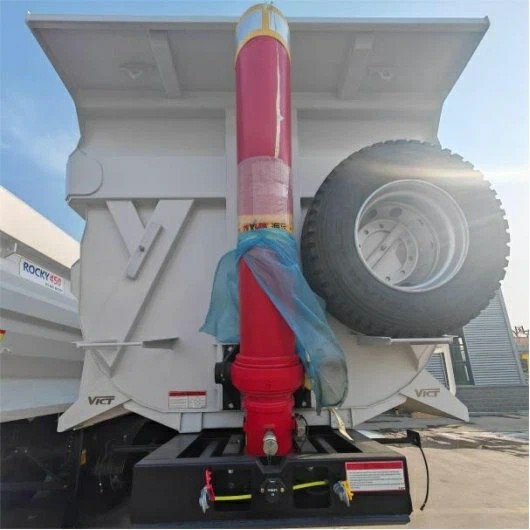

Hydraulic system: HYVA/BINOTTO brand rear-tipping hydraulic lifting; braking: dual-circuit air brake + ABS; suspension: reinforced mechanical suspension (air suspension optional) |
|
Supporting Accessories |
3.5-inch kingpin, 30t-class landing gear, spare tire rack, steel toolbox, imported Hyva oil cylinder |
Advantages and Applications
Core Advantages
Compliant and heavy-load capable: Adopting a three-line six-axle design, it is one of the few 100-ton class vehicles that can legally operate on roads. The frame is made of high-strength steel, with strong bearing capacity and resistance to deformation.
Efficient and stable unloading: Equipped with a mature hydraulic dump system, it has strong lifting force and stable operation. It can also be optionally configured with side-tipping or rear-tipping modes to meet different unloading needs.
Safe and durable: 24 sets of tires reduce road pressure; combined with well-known brand braking systems, it ensures more stable driving. Key components are selected from well-known brands, and the polyurethane coating is rust-resistant, ensuring a long service life.
Main Applications
Mine transportation: Suitable for open-pit mines and other scenarios, efficiently transferring heavy bulk materials such as ores and slag.
Engineering construction: In infrastructure and road construction, it transports building materials such as sand, earthwork, and precast concrete components.
Equipment transshipment: Some models are equipped with ramps, capable of transporting engineering machinery such as excavators and loaders.
Long-distance freight transport: With strong compliance, it is suitable for medium and long-distance transportation of bulk heavy goods such as coal and steel.
